You notice it in the pause between pressing enter and seeing the first character appear. On our 48 GB M4 Pro running a 31-billion-parameter model, that pause measured 2.12 seconds for a 108-token prompt in our prompt processing benchmark. The gap between these two chips is the biggest single-generation jump Apple has delivered for local AI inference since the M1 Max, and the first time Apple has added dedicated matrix hardware inside the GPU specifically for machine learning workloads.
The question for anyone buying a Mac for local LLM work in mid-2026 is straightforward: how much faster is the M5 Max, and does it matter for the models you actually run?
What makes each chip different for inference?
The M4 Pro and M5 Max share a common CPU architecture and process node. Both are built on a 3-nanometer process. Both include a 16-core Neural Engine. The differences that matter for inference live in the GPU, the memory subsystem, and a new piece of hardware Apple calls the Neural Accelerator.
The M4 Pro ships with a 14-core CPU and a 20-core GPU, paired with 273 GB per second of unified memory bandwidth and a maximum of 64 GB of unified memory, according to Apple’s published specifications. It is a single-die design available in the Mac Mini and MacBook Pro.
The M5 Max ships with an 18-core CPU and up to a 40-core GPU. Its unified memory bandwidth reaches 614 GB per second, more than double the M4 Pro, and supports up to 128 GB of unified memory. The M5 Max uses Apple’s new Fusion Architecture, which connects two dies into a single SoC. The critical architectural addition is a dedicated Neural Accelerator inside each GPU core. These are fixed-function matrix-multiplication units that process AI workloads without competing for shader execution resources.
The implication for inference is simple to state but uneven in practice: prompt processing uses GPU compute and benefits from both the extra GPU cores and the Neural Accelerators. Token generation is memory-bandwidth-bound and improves roughly in line with the bandwidth ratio, which is 2.25 to 1 in the M5 Max’s favor. The two workloads have different bottlenecks, and the speedup is different for each.
How does prompt processing compare?
Prompt processing, also called prefill, is the phase where the model reads and encodes the input text before it starts generating output. This phase is compute-bound rather than bandwidth-bound, which means it benefits directly from the M5 Max’s 40 GPU cores and 40 Neural Accelerators versus the M4 Pro’s 20 GPU cores with no Neural Accelerators.
Apple’s own claim is over 4x peak GPU compute for AI on the M5 Pro and M5 Max relative to the previous generation, as stated in the company’s March 2026 press release. The Neural Accelerators are the primary driver of this multiplier.
On the M4 Pro side, our own measurement puts prompt processing for Gemma 4 31B QAT at about 65 tokens per second, scaling linearly with prompt length, so a 5,197-token prompt waited 79.56 seconds for its first token. For RAG workflows, agentic tool-calling loops, or any workload that re-encodes large context windows repeatedly, the M5 Max’s prompt-processing advantage translates directly into reduced time-to-first-token and faster cycle times.

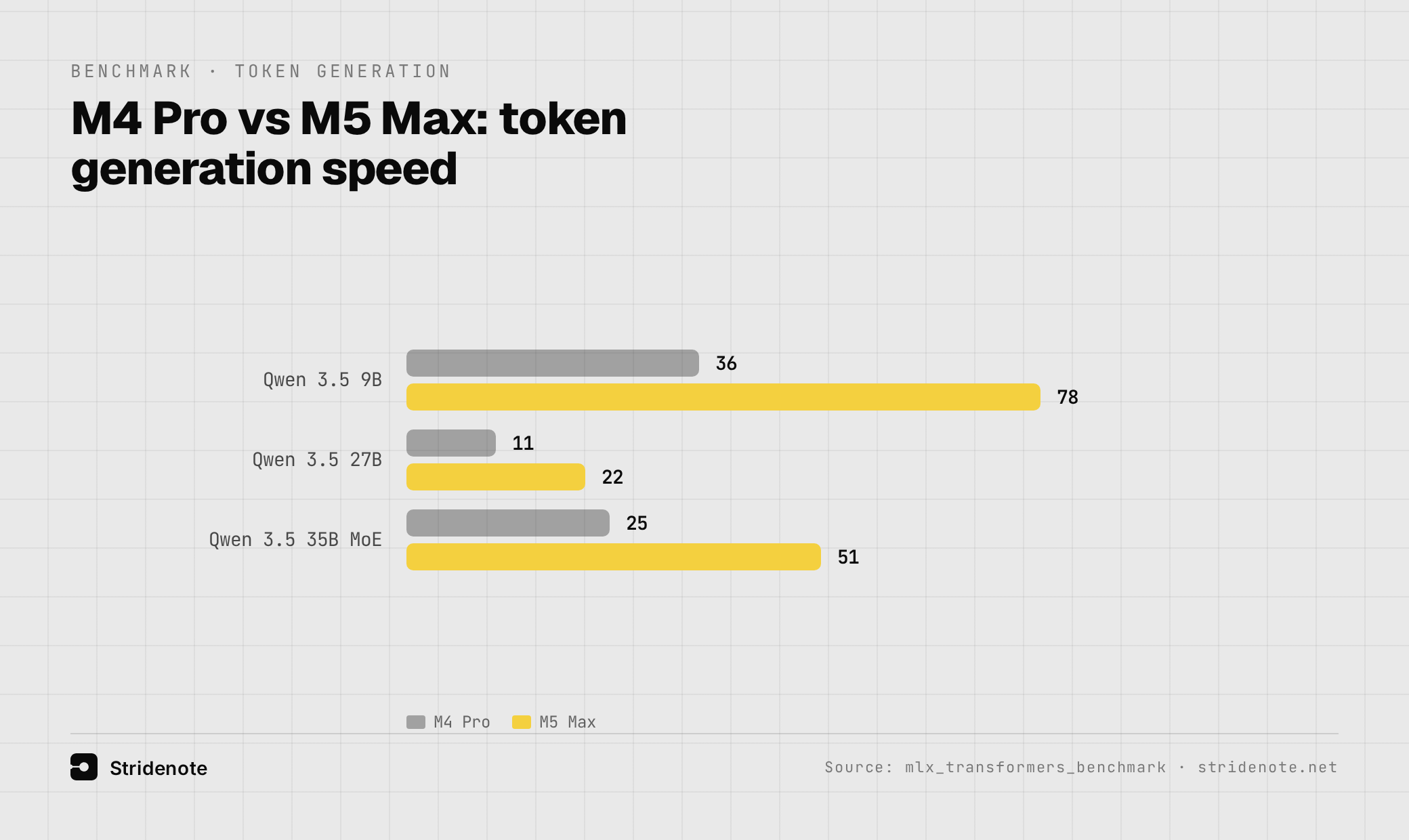

How does token generation compare?
Token generation, also called decode, is the phase where the model produces one token at a time in an autoregressive loop. This phase is fundamentally bandwidth-bound because the full model weights must be read from memory for every single token produced. A 9-billion-parameter model at int4 quantization reads its full set of weights for every token it produces.
Against the M4 Pro, the M5 Max has a 2.25x bandwidth advantage, and generation speed should track that ratio closely, because transformer inference is a memory-read-dominated workload. The M4 Max, which already has 546 GB per second of bandwidth, is the closer comparison, and its bandwidth gap to the M5 Max is much smaller.
Which models can each chip actually run?
Memory capacity determines which models fit, and bandwidth determines how fast they run. These are separate constraints, and they interact with the quantization level you choose.
The M4 Pro tops out at 64 GB of unified memory. In practice, after macOS reserves roughly 6 to 8 GB for the operating system, about 56 GB remains for model weights and KV cache. A 70-billion-parameter model at Q4_K_M quantization requires approximately 40 GB for weights alone, leaving 16 GB for context. That is workable for short to medium-length conversations but limits long-context applications. A 70B model at Q8 quantization requires approximately 70 GB and does not fit in the M4 Pro at all.
The M5 Max with 128 GB has roughly 120 GB available after OS overhead. That fits a 70B Q8 model with room for KV cache, and it can run 120-billion-parameter mixture-of-experts models like Qwen 3.5 122B at Q4 quantization. The 64 GB configuration of the M5 Max matches the M4 Pro 48 GB on model capacity but has 2.25 times the memory bandwidth.
For the models most people actually run day to day, here is the M4 Pro side, measured on our own 48 GB machine with Q4 GGUF builds in LM Studio, twelve runs each: Qwen 3.5 9B at a median 32.3 tokens per second, Gemma 4 31B at 11.0 and Qwen 3.5 27B at 9.6, from our test of LM Studio’s default context length. We have not measured an M5 Max. Neither chip struggles with models in the 7B to 14B range. The M5 Max’s advantage compounds as model size increases, because larger models keep the memory bus saturated more consistently.
Is the upgrade worth it?
For anyone already running an M1 Max or M2 Max MacBook Pro, Apple puts the M5 Max at over 6x the peak GPU compute for AI of the M1 Max. That is a meaningful upgrade on paper, especially if your workflow involves long-context retrieval or agentic loops where prompt processing dominates total latency.
For M4 Pro owners, the calculus is more specific. The M4 Pro 48 GB or 64 GB is already a capable local inference machine. It runs 32B models at usable speeds and costs significantly less than an M5 Max MacBook Pro. The M5 Max’s advantages are clearest if you regularly process very large contexts, need 70B models at conversational speed, or require the 128 GB ceiling for Q8-quantized frontier models.
The M5 Max’s Neural Accelerator architecture is the more interesting long-term change. Previous Apple Silicon generations fixed the Neural Engine at 16 cores regardless of chip tier. The M5 line makes AI compute scale with GPU core count for the first time, which means future software optimized for Metal 4’s Tensor APIs will pull more performance from the hardware than current MLX and llama.cpp builds do. The gap between M4 Pro and M5 Max may widen over the next year as frameworks catch up.
The M5 Max running today is not the ceiling of this architecture. It is the first data point.
Numbers for the M4 Pro across several model families are in our local LLM benchmarks on the M4 Pro.
Disclaimer: We do not have an M5 Max. The M5 Max figures in this piece are Apple’s published claims, not measurements. The M4 Pro figures are our own, from the studio test machine.
